Material: USP Type 1, Class A, 33 Borosilicate Glass
Dimensions: 22 x 38mm/22.5 x 46mm/22.5 x 75mm
Application: GC system
Neck Diameter: 20mm
Qty/Pack: 100pcs/pack
Volume: 6-20ml
Payment: T/T
MOQ: 1 pack
Details

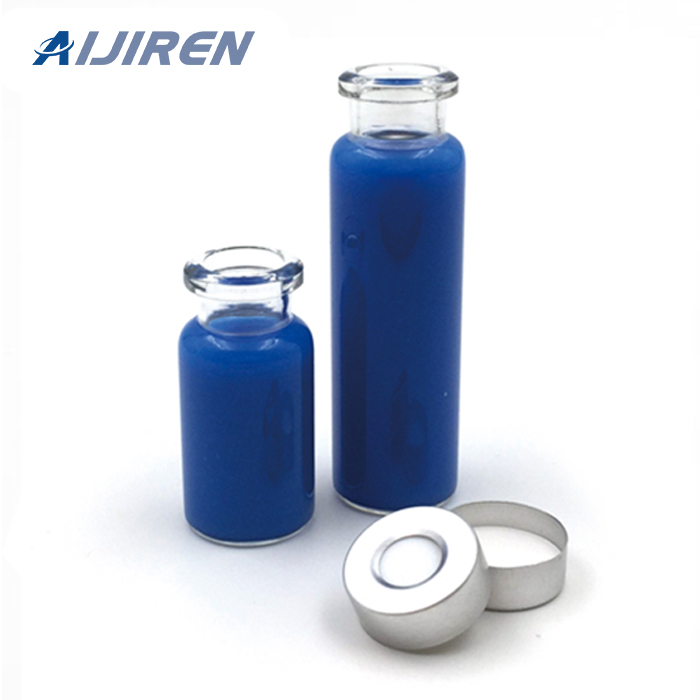

| Products name | 6-20mL 20mm Crimp-Top Headspace ND20 |
| Dimension | 20mm |
| Cap Color | Silver |
| Septa details | White, Nature, Grey,3mm thickness. |
| Material | Aluminum for Cap, PTFE/Silicone for Septa |
| Package | 100pcs/Pack |
| Cap type | Open top |
| Septa type | Non-slit |
Description
Headspace vials form Aijiren Technology, Inc with high quality and favorable price. Zhejiang Aijiren is a autosampler vials manufacturer, we supply autosampler vials, septa and caps with factory price without extra cost.
20mm Headspace Crimp Vials are often used in Shimadzu, Spectral Physics, Varian, and other autosamplers.
20mm crimp top septa is used PTFE and high-quality silicone rubber or ultra-pure silica as raw materials, the gasket is guaranteed to be non-toxic.
1. Bevelled top design
2. Available with amber or clear vial
3. Available with 20ml or 10ml vial
4. Magnetic Aluminum cap suit for CTC instrument
5. Butyl/PTFE, Pharma-Fix-Liner (Butyl/PTFE), Silicone/PTFE are all Available
6. Rounded or flat bottom profiles are available for accurate instrument compatibility
7. 6ml crimp top headspace vial with matched 20mm Aluminum & Magnetic Aluminum cap, 20mm PTFE/rubber septa
Features
1. Crimp caps provide a consistently secure seal
2. Beveled top for maximum secure seal
3. Choice of a pressure safety release cap at 45 psi
4. 10/20mL Clear /Amber Precision Crimp Headspace Vial,Flat/Round Bottom, 22.5*46mm
5. PTFE/Silicone Septa Φ20*3mm Temperature Resistant -60℃-200℃ with 9mm thread
6. Crimp-top Aluminum Cap, 10mm Centre Hole Φ20mm
7. Crimp-top Blue Magnetic Aluminum cap, 10mm Centre Hole Φ20mm available
About 6mL vials:

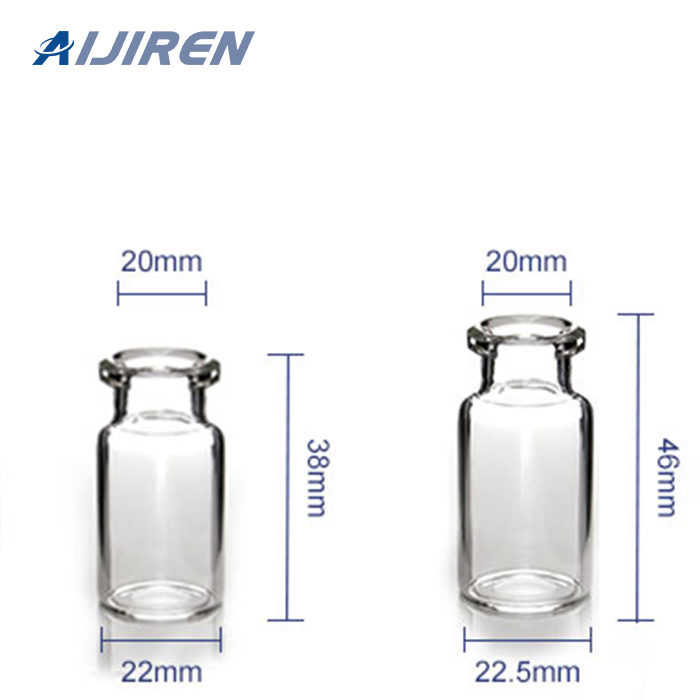

1. 6ml crimp vials ,22*38mm
2. suitable metrohm instruments
3. Available with amber or clear vial
Technical Parameter
1. 20mm Headspace Crimp Vials ND20
 |
 |
 |
 |
|
| Part No. | VH0613 | VH1017 (Economy) VH1013 |
VHR1017 | VH1035 |
| Description | 6mL Clear Crimp-top Headspace Vial, Flat Bottom, 22*38mm |
10mL Clear Crimp-top Headspace Vial, Flat Bottom, 22.5*46mm |
10mL Clear Crimp-top Headspace Vial, Round Bottom 22.5*46mm |
10mL Amber Crimp-top Headspace Vial, Flat Bottom, 22.5*46mm |
 |
 |
 |
 |
|
| Part No. | VH2017 (Economy) VH2013 |
VHR2017 (Economy) VHR2013 |
VH2035 | VHR2035 |

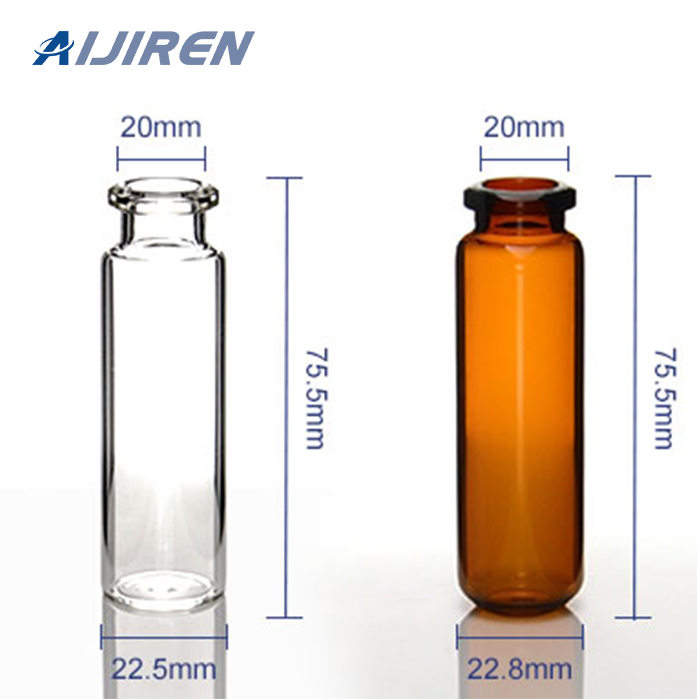

| Description | 20mL Clear Crimp-top Headspace Vial, Flat Bottom, 22.5*75mm |
20mL Clear Crimp-top Headspace Vial, Round Bottom, 22.8*75mm |
20mL Amber Crimp-top Headspace Vial, Flat Bottom, 22.5*75mm |
20mL Amber Crimp-top Headspace Vial, Round Bottom, 22.5*75mm |
2. 20mm Crimp-top Aluminum Caps with Septa
 |
 |
.png) |
 |
 |
|
| Part No. | SC201201 | SBC201202 | MSC206201 | MSC207201 | SCS201201 |
| Description | White PTFE/White Silicone Septa, 20mm Crimp-top Aluminum Cap, 10mm Centre Hole |
White PTFE/White Silicone Septa, 20mm Crimp-top Blue Magnetic Aluminum Cap, 10mm Centre Hole |
Grey PTFE/Moulded Butyl Septa, 20mm Crimp-top Aluminum Cap, 10mm Centre Hole |
Grey PTFE/Pharma-Fix Butyl Septa, 20mm Crimp-top Aluminum Cap, 10mm Centre Hole |
White PTFE/White Silicone Septa |
